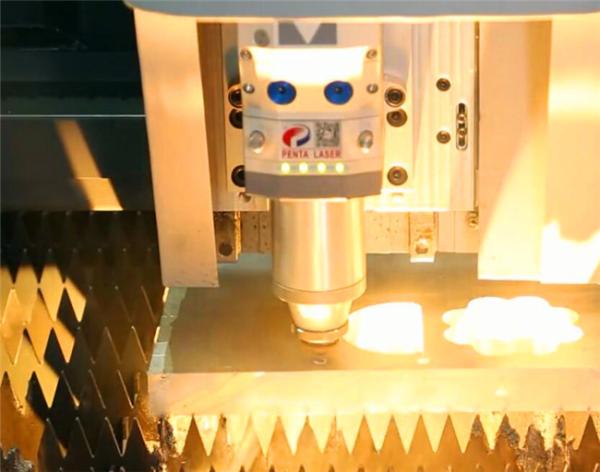

CNC Aluminum Alloy Metal Cutter Fiber Laser Cutting Machine
Pallet exchange at the same time PENTA LASER Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency with Unique design innovation such as high speed movement and quick startup and shutdown, structure design is more compac and saves more sapce,working table is lower and easier fr loading and unloading process.
Features
- IPG or Trudisk laser source from 1kw to 12kw at your choice
- Double servo motor driven synchronously, bring higher speed and acceleration
- Double driving synchonous technology make sure high speed and precision cutting
- Auto Focus Cutting Head dedicated for high power (Precitec)
- Dedicated laser CNC that makes the best and most of the laser
- Fast pallet exchanger and full enclosure
- Handy embedded cutting database
Technical Specification
| Model | BOLT 4020 |
| Rate output power | 2400 W |
| Rapid Speed | 200 m/min |
| Maximum Acceleration | 4.0 G |
| Accuracy | ±0.03 mm/m |
| Mechanical Repeatability | ±0.01 mm/m |
| Maximum cutting thickness of mild steel | 18 mm |
| Maximum cutting thickness of stainless steel | 8 mm |
| Working Table | 4000 mm ×2000 mm |
Advantages
Stable Mainframe
Efficient Control System
Imported Operating System Smart Manager
Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.
The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.
Imported nesting software function
New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners
Pre-perforation System
Accomplish the pre-perforation as settled
Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate
Application
Suitable for thick sheet cutting and widely used in the fields of aerospace high-speed locomotive, shipbuilding and oil drilling equipment etc. Leading beam compensation technology meets the demand of large-format sheet cutting.
Sample
