Horizontal Steel Plate Laser Cutting Machine Full Automatically Lower Consumption

Unique Database Fast Piercing Thick Plate Fiber Laser Cutting Machine

Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.

Features

- IPG TRUMPF RAYCUS Laser Source 1kw to 12kw at your choice

- Double servo motor driven synchronously, bring higher speed and acceleration

- Double driving synchonous technology make sure high speed and precision cutting

- Auto Focus Cutting Head dedicated for high power (Precitec)

- Dedicated laser CNC that makes the best and most of the laser

- Fast pallet exchanger and full enclosure

- Handy embedded cutting database

Technical Specification

Advantages

Stable Mainframe

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Efficient Control System

New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

Imported Operating System Smart Manager

Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

Imported nesting software function

Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

Pre-perforation System

Accomplish the pre-perforation as settled

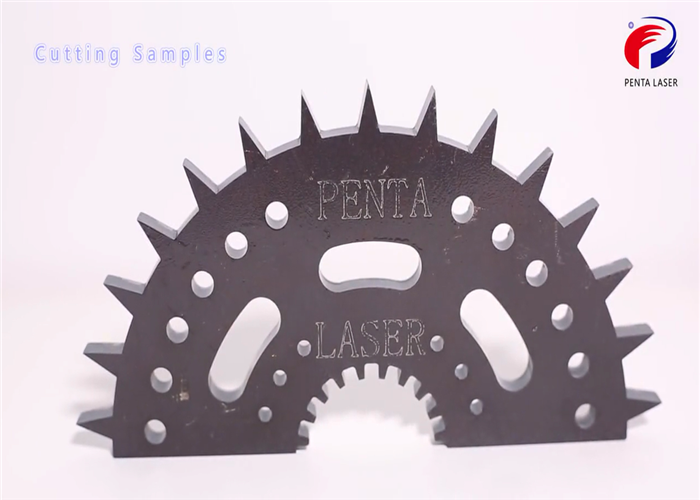

Samples

ipg laser cutting machine

fiber optic laser cutting machine
