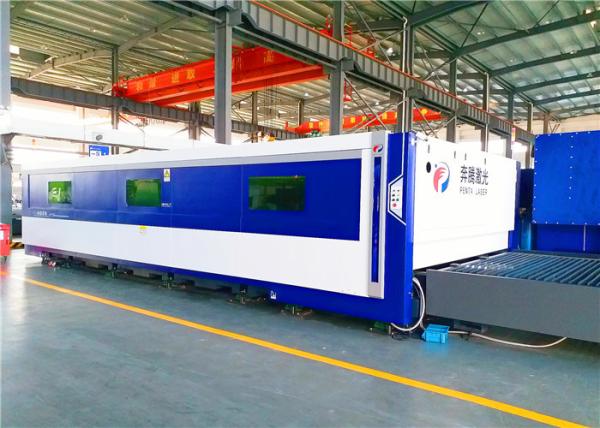

CNC Fiber Carbon Steel Laser Cutter Sheet Metal Laser Cutting Machine
Penta Plus laser cutting machine adopt imported fiber laser source and cutting head, New Z32 real time CNC system with dynamic and geometric JERK control.
Smart Manager is originally imported from Europe. This software is based on the Windows XP system and can fully interface with Italy CNC system which original imported also.Therefore the real control of the machine, the laser source and software update is more convenient and fast Friendly interface, easy to learn and operation; easy to edit the numerical control program and high readability cutting parameters database is available, at the same time the real time adjustment to the cutting quality. Easier and faster in automatic edge-finding function.
The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.
Technical specifications
| Model | PLUS 8025 |
| Power | 2000W |
| Rapid Speed | 120m/min |
| Maximum Acceleration | 1.7G |
| VDI 3441 Accuracy | ±0.03mm/m |
| Mechanical Repeatability | ±0.01mm/m |
| Maximum Thickness Mild Steel | 16mm |
| Maximum Thickness Stainless Steel | 8mm |
| Table Travel | 8000mm × 2500mm |
Fiber Plus Model Features:
- Equiped with IPG laser source from 1kw to 12kw
- Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc
- Double driving synchonous technology make sure high speed and precision cutting
- Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions
- CNC control system and operation software, Lantek Nesting software
- Machine Frame designs with suction system and cooper plate protection
- Double servo motor driver, bring higher speed and acceleration,
- Rapid Speed:120m/min,Acceleration:1.7G
- Fast pallet exchanger and full enclosure
- Cutting database help users choose optimal cutting parameter
- Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available
Application
Mainly for cutting metallic material such as mild steel, stainless steel, aluminum
alloy ,titanium alloy , high temperature alloy ect
